Characteristics:

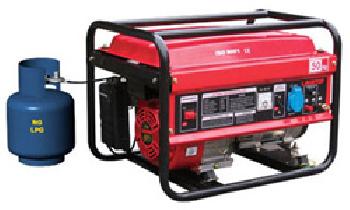

1. LPG series is 4-stroke, OHV, single cylinder, air-cooled gas generator;
2. Greatly used as a power for DIY work, stand-by electricity for commercial
use or residential use.
Specifications:
|
Generator
|
Model
|
MPG6500CL
|
|
Rated Frequency (Hz)
|
50
|
60
|
|
Max. Output (KVA)
|
5.5
|
6.0
|
|
Rated Output (KVA)
|
5.0
|
5.5
|
|
AC Output Voltage (V)
|
11020 / 220240
|
|
DC Output
|
12V-8.3A
|
|
Engine
|
Model
|
MPG390
|
|
Displacement (cc) / (cu.in)
|
389 / 23.7
|
|
Diameter X Stroke (mm) / (inch)
|
88*64 / 3.46*2.51
|
|
Rated Output (kw / rpm)
|
6.4 / 3000; 7.3 / 3600
|
|
Ignition System
|
TCI
|
|
Start Mode
|
Recoil or Electric Start
|
|
Oil Capacity (L) / (US.Gal)
|
1.4 / 0.37
|
|
Fuel
|
Liquefied Petroleum Gas
|
|
Gas Flow Rate (kg / h)
|
2
|
|
Unit
|
Noise Level (dBA / at 7m)
|
84
|
|
Dimension (mm) / (inch)
|
685*512*550
|
|
26.9*20.1*21.6
|
|
Net Weight (kg) / (lbs)
|
85 / 187
|
|
|
